Overview:

This robust assembly is designed for optimal performance in cable pulling applications, featuring strong, welded steel frames and forged steel hooks with a 1-inch opening for secure attachment.


The kit is specifically engineered to accommodate sheaves with a maximum capacity that aligns with or surpasses the cable puller's maximum force, ensuring safe and efficient operation. It includes aluminium alloy sheaves equipped with self-lubricating bearings for smooth rotation and reduced wear.


The comprehensive package comes with essential components such as a Sheave Pin (UPC 16797), two Sheave Pin Clips (UPC 50302), a Sheave (UPC 15363), two Sheave Bushings (UPC 16798), and a Yoke Frame (UPC 16802), making it a complete solution for professional-grade cable installations.



Features:

  • Compatible with Greenlee equipment.
  • Constructed with durable, welded steel frames.
  • Equipped with forged steel closure-type hooks, featuring a 25.4mm opening.
  • Features sheaves made from aluminium alloy, complete with self-lubricating bearings for smooth operation.



Our Range:

Hook Sheeve – 17.8kN WLL

  1. OD 152mm, Width 38mm GHS178-01
  2. OD 305mm, Width 84mm GHS178-02
  3. OD 457mm, Width 178mm GHS178-03
  4. OD 610mm, Width 249mm GHS178-04



Hook Sheeves – 35.8kN WLL

  1. OD 305mm, Width 127mm GHS358-01
  2. OD 458mm, Width 152mm GHS358-02
  3. OD 610mm, Width 165mm GHS358-03

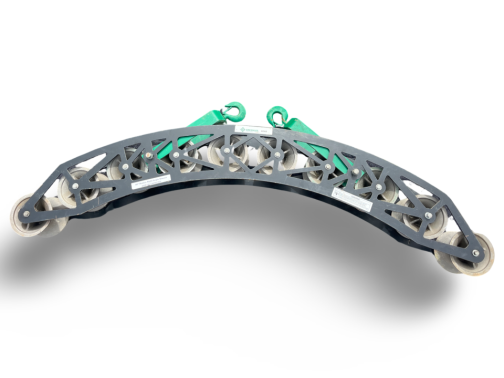

Conveyor Sheaves – 17.8kN

  1. 610mm Sheave GCS178-01
  2. 915mm Sheave GCS178-02
  3. 1220mm Sheave GCS178-03
